Casta BetaJoint armoured joint is a tough, sturdy, yet remarkably light construction joint designed for Light Industrial, Retail and Pedestrian areas.
- Strong, durable joint arris protection, with added reinforcement for trouble-free installation.
- Unique grid-cut face (patent pending) securely anchors the joint into the concrete along the whole length.
- Radiused edges (on the top inside corners) reduce damage to forklift wheels.
How it works

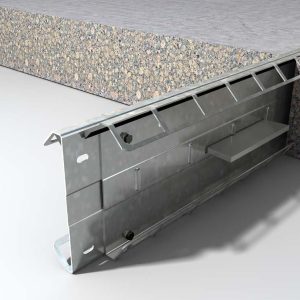

BETAJOINT® Light Armoured Joint
Protect the aris of the construction joint with Casta BetaJoint Steel Construction Joint. The Casta BetaEdge joint is a tough, hard-working armoured joint for Retail and Light Industrial applications. With its full depth divider plate, pre-installed dowels for efficient load transfer and strong radiused edge protecting the joint aris, this steel joint is a simple yet robust option for many applications.
The twin full-height divider plates, specially shaped at the dowel point, add to its strength and rigidity. Galvanized as standard, Casta BetaEdge is a versatile and economical alternative to a traditional-style armoured joint. Setting the joint to the height you want requires no tools and takes seconds. All conventional methods of installing the joint are applicable.
![](https://www.casta.co.nz/wp-content/uploads/2023/07/product-page-image.jpg)
![](https://www.casta.co.nz/wp-content/uploads/2023/07/Screenshot_20240718_111011_LinkedIn-1.jpg)
![](https://www.casta.co.nz/wp-content/uploads/2023/07/Screenshot_20240718_110944_LinkedIn.jpg)
![](https://www.casta.co.nz/wp-content/uploads/2023/07/Screenshot_20240718_110950_LinkedIn.jpg)
key benefits
- Ideal for Retail Floors to form and protect the construction joint
- Shear studs securely anchor the joint into the slab along its length
- Resistant to twisting caused by the impact of wheeled traffic.
- Efficient load transfer between adjacent concrete slabs with plate dowels.
- Supplied as one unit for easy handling and installation – the two sides are connected with frangible rivets which separate naturally after installation.
- Eliminate vertical movement between slabs during concrete contraction, for a level floor surface.
- Allows controlled horizontal slab movement, preventing random cracking.
![](https://www.casta.co.nz/wp-content/uploads/2023/07/BetaJoint-Cross-Section.png)
![](https://www.casta.co.nz/wp-content/uploads/2023/07/Beta.png)
specifications
ALL THE DETAILS YOU NEED.
PRODUCT INFORMATION
AND DESIGN SPECIFICATIONS
Downloadable product information, technical data sheets, MSDS and architectural specifications.
SPECIFICATION TEXT
FOR YOUR PROJECT PLANS
Simply copy and paste this specification text
into your plans.
Product details: Casta BetaJoint® Joint installed as per CASTA specifications.
